LCN 4031

LCN CLOSER

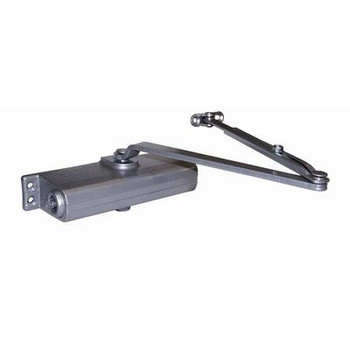

The LCN 4031 series is a non-handed, surface mounted closer. The choice of three mountings, installation accessories and ease of installation offer a versatile solution to door control in moderate traffic applications. The LCN 4031 has been designed to be used on metal or timber swinging commercial interior/ exterior doors and is ideally suited for apartment entrance, office, storeroom and toilet doors.

The 4030 Series features a metal cover, with optional plated finish available for cover, arm and fasteners. It mounts hinge side, top jamb and parallel arm, on left- or right-swinging doors. Materials include a high-strength cast iron cylinder and forged steel main arm.

Powder coat finish offered in standard colors and a large selection of optional custom colors
Standard non-handed metal cover
Optional plated finish on metal cover, arm and fasteners
Optional SRI primer for installations in corrosive conditions available with powder coat only

CALL TO PLACE CUSTOM ORDER FOR: OTHER ARM OPTIONS, SPECIAL RUST INHIBITOR(SRI), CUSTOM POWDER FINISH(RAL) OR BRITE METALLIC(MTLPC) AND 4031T-SERIES OPTION

SPECIFICATIONS:

Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”
Non-sized (1-4) cylinder is adjustable for interior doors to 4’0” and exterior doors to 3’0”
Meets ADA requirements
UL and cUL listed for self-closing doors without hold-open
Tested and certified under ANSI/BHMA A156.4 Grade 1

**ALLOW 1-3 WEEKS FOR SHIPPING, IF THIS IS AN URGENT ORDER PLEASE CALL FOR AVAILABILITY**

• Reg (regular arm only)
• Rw/PA (Regular Arm with Parallel Arm adapter)
• Hw/PA (is Hold Open Arm with Parallel Arm adapter)
• EDA (extra duty arm only)
• CUSH (Cush-n-Stop arm only)
• HCUSH (T Handle Cush-n-Stop arm)
• Long (Long arm )
